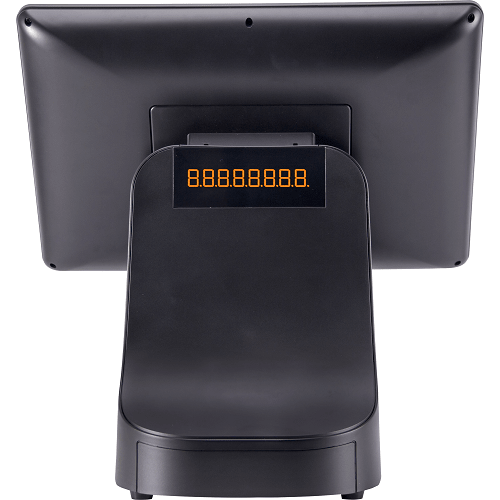

ZKAIO6000 Series
ZKAIO6000
| Model Name |
ZKAIO6000 |
| System |
|
| Processor |
Intel® Celeron® J1900 Quad-Core Processor (2.0 GHz) |
| System Memory |
4GB Standard, DDR3L 1666MHz (Max.8GB) |
| Storage Device |
64GB Msata SSD Standard,1*2.5’’ HDD / 2.5’’ SSD |
| OS Supported |
Windows 7, Windows 8, Windows 10 IoT Enterprise, POS Ready 7, Linux |
| Audio |
Realtek ALC662 |
| Display and Touch |
|
| Type |
15” TFT LCD, LED Backlight |
| Max. Resolution |
1024*768 |
| Touch Screen |
Projected Capacitive Touch Screen |
| Customer Display |
LED (8C digital tube) |
| External I/0 Ports |
|
| VGA |
1*DB-15 |
| USB |
5*USB 2.0 & 1*USB 3.0 |
| Serial & HDMI |
1*RS232 (Max.4pcs) |
| LAN |
1*RJ45 |
| Audio |
1*Line-out |
| Power |
|
| Power Supply |
Adapter 12V DC 5A |
| Physical Environmental |
|
| Package |
470*380*480mm |
| Weight |
7.5 kg(Net) / 8.5 kg(Gross) |
| Certifications |
CE FCC |
| Color |
Black |
| Options & Peripherals |
|
| 2nd Display |
10.1” TFT LCD |
| VFD |
20 Columns*2 Lines |
| MSR |
3 Tracks |
| Fingerprint |
USB fingerprint reader (SLK20R) |
